Chupacabra
Chupacabra

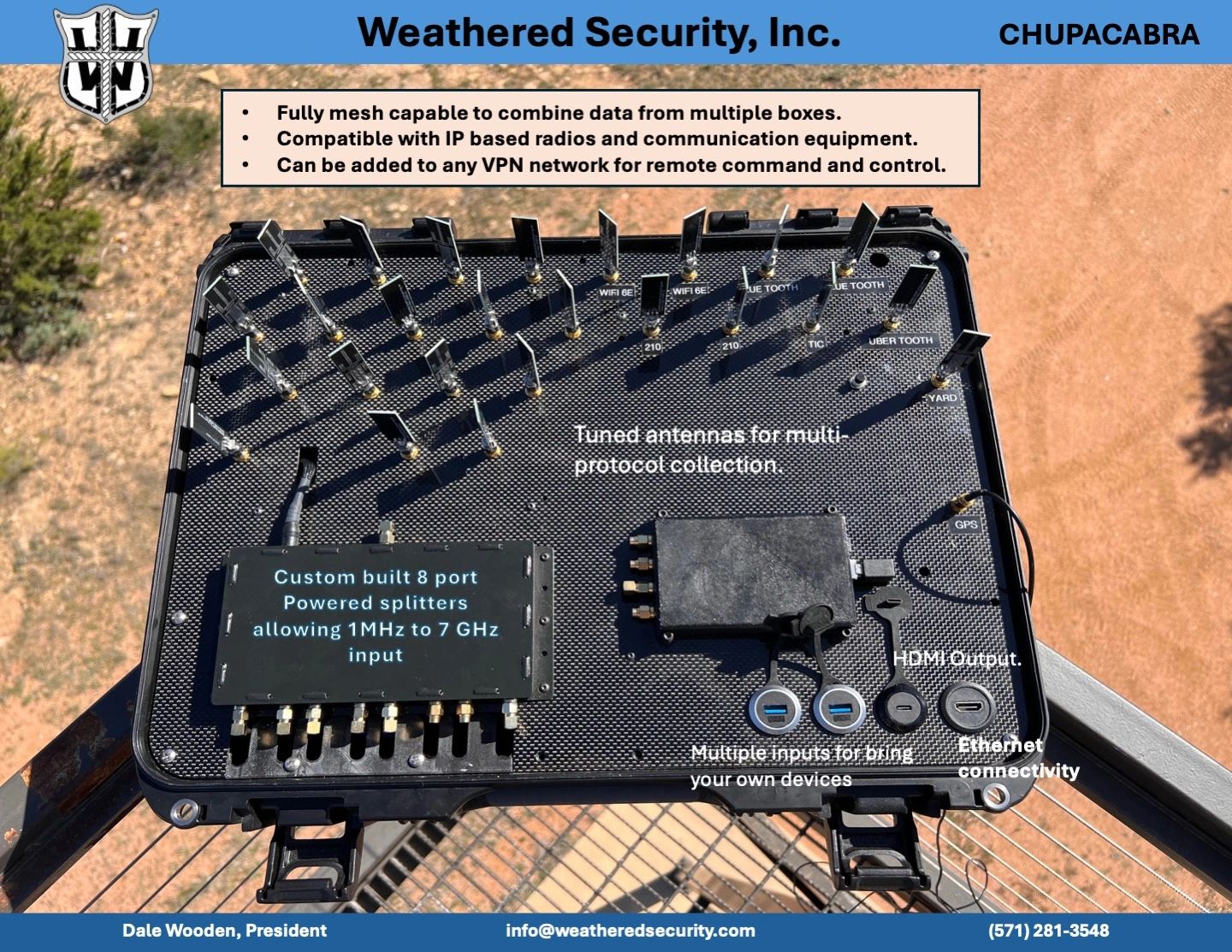

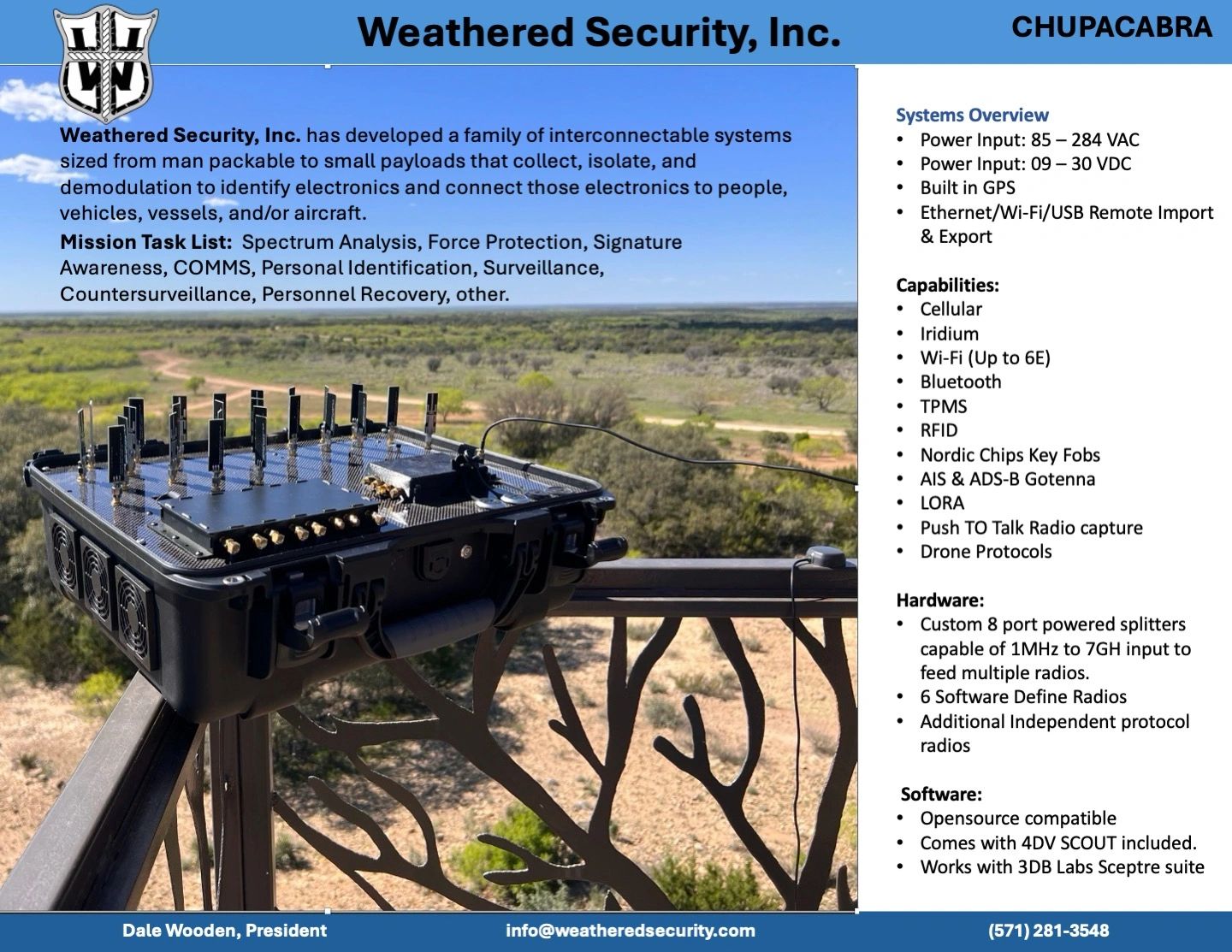

Weathered Security, Inc. has developed a family of interconnectable systems sized from man packable to small payloads that collect, isolate, and demodulation to identify electronics and connect those electronics to people, vehicles, vessels, and/or aircraft.
- Fully mesh capable to combine data from multiple boxes.
- Compatible with IP based radios and communication equipment.
- Can be added to any VPN network for remote command and control.
Mission Task List: Spectrum Analysis, Force Protection, Signature Awareness, COMMS, Personal Identification, Surveillance, Counter surveillance, Personnel Recovery, other.
Systems Overview
- Power Input: 85 – 284 VAC
- Power Input: 09 – 30 VDC
- Built in GPS
- Ethernet/Wi-Fi/USB Remote Import & Export
Capabilities
- Cellular
- Iridium
- Wi-Fi (Up to 6E)
- Bluetooth
- TPMS
- RFID
- Nordic Chips Key Fobs
- AIS & ADS-B Gotenna
- LORA
- Push TO Talk Radio capture
- Drone Protocols

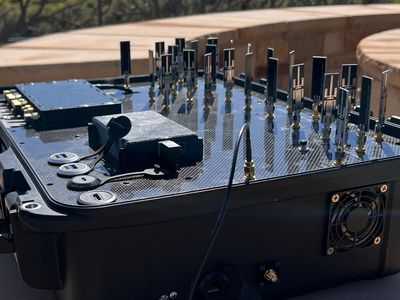

Hardware
- Custom 8 port powered splitters capable of 1MHz to 7GH input to feed multiple radios.
- 6 Software Define Radios
- Additional Independent protocol radios
Software
- Opensource compatible
- Comes with 4DV SCOUT included.
- Works with 3DB Labs Sceptre suite

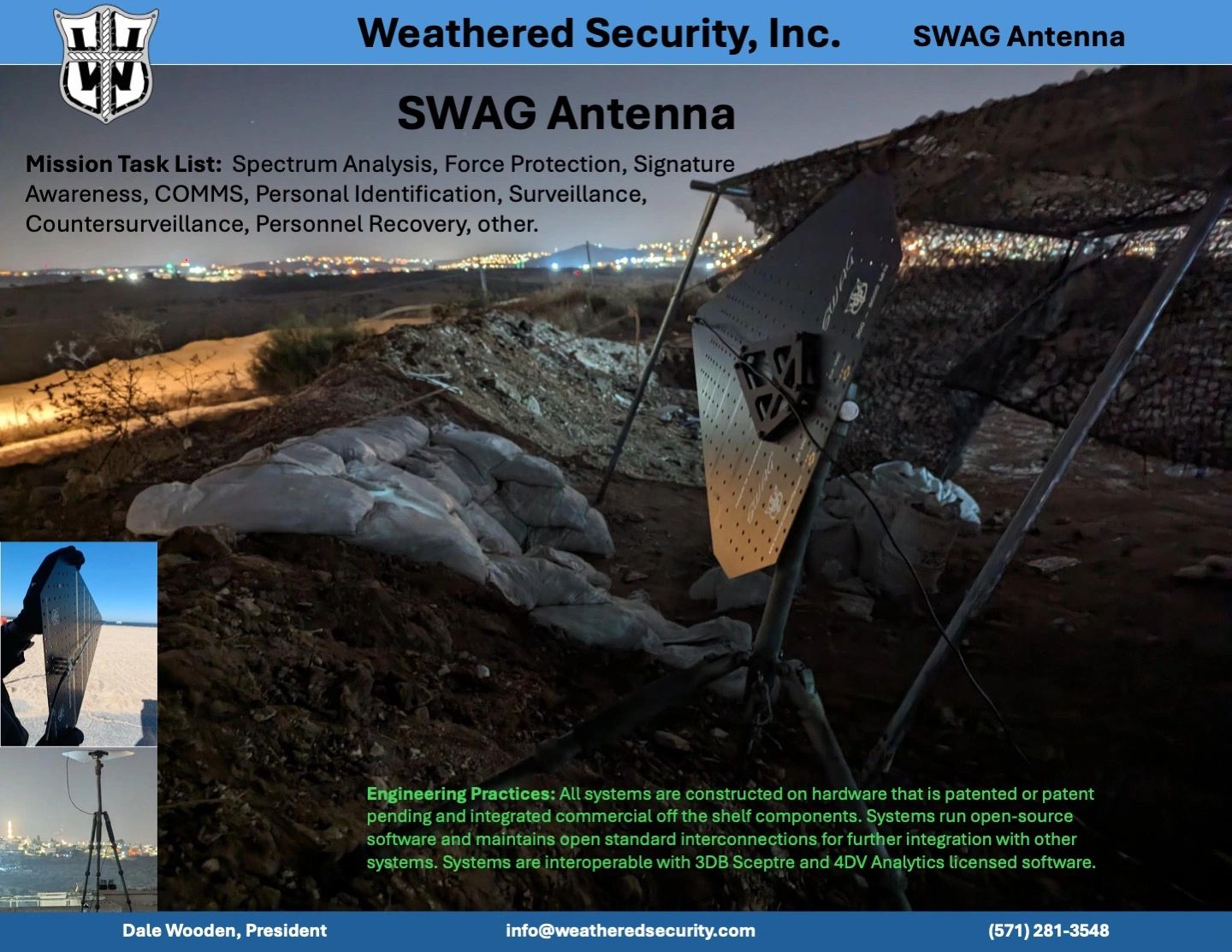

SWAG Antenna
SWAG Antenna
Mission Task List: Spectrum Analysis, Force Protection, Signature Awareness, COMMS, Personal Identification, Surveillance, Countersurveillance, Personnel Recovery, other.
Engineering Practices: All systems are constructed on hardware that is patented or patent pending and integrated commercial off the shelf components. Systems run open-source software and maintains open standard interconnections for further integration with other systems. Systems are interoperable with 3DB Sceptre and 4DV Analytics licensed software.

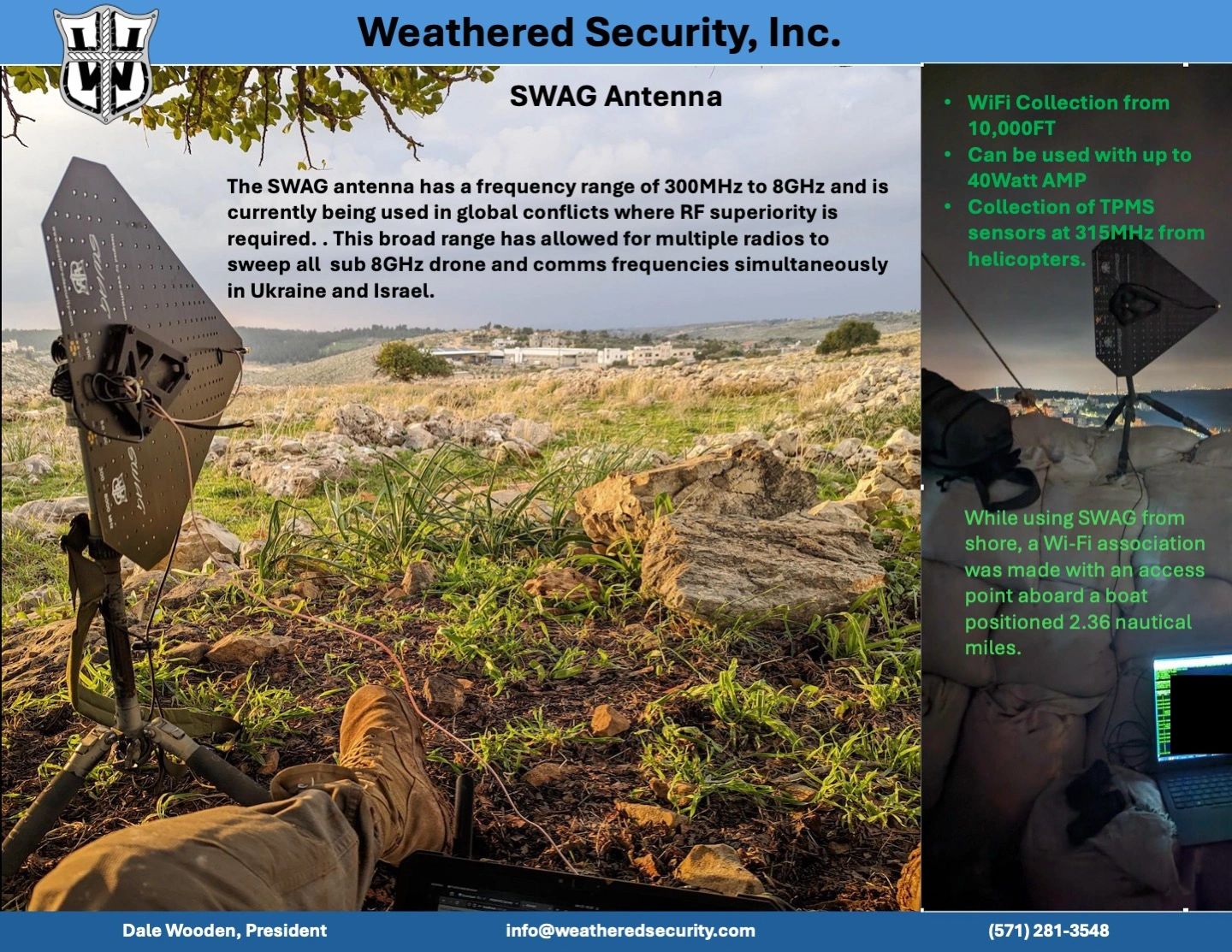

The SWAG antenna has a frequency range of 300MHz to 8GHz and is currently being used in global conflicts where RF superiority is required. . This broad range has allowed for multiple radios to sweep all sub 8GHz drone and comms frequencies simultaneously in Ukraine and Israel.
- WiFI Collection from 10,000FT
- Can be used with up to 40Watt AMP
- Collection of TPMS sensors at 315MHz from helicopters.

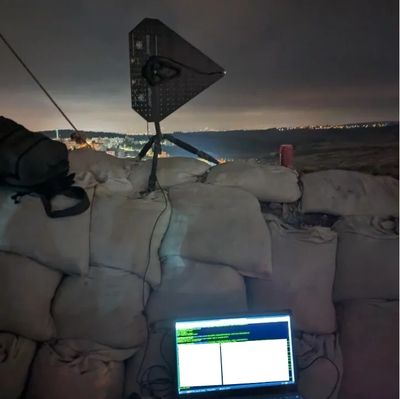

While using SWAG from shore, a Wi-Fi association was made with an access point aboard a boat positioned 2.36 nautical miles.
